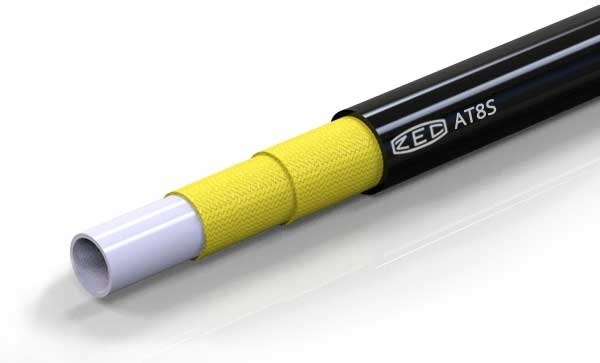

TECHNICAL FEATURES
Technical-constructive features:
Inner core in thermoplastic polymer suitable to be in contact with food and breathing air, reinforcement in double aramid fiber
braid and exterior covering in antiabrasion polyurethane stabilized against UV rays and resistant to hydrolysis and
microorganisms, micro perforated for air and compatible gases.
Applications:
AT8S BREATHING AIR hose series have been created for the high pressure conduction of fluids for air compressor stations
and for SCBA refilling requiring a raw material suitable to be used with food. These hoses are not suitable for medical and
pharmaceutical use, explosive gases and food containing alcohol.
For use with high pressure oxygen, please refer to the oxygen service guidelines available on the reserverd area.
Working temperature:
from -40°C to +82°C from -40°F to +180°F.
Max. working temperature of air, water and water-based fluids is +70°C (+158°F).
Working pressure:
Safety ratio 1:4
CONSTANT PRESSURE AT 413 BAR
SAE 100R8, ISO 3949, EU 10/2011 STANDARDS, CGA G-7.1 2004
GRADE E, NFPA 1901 STANDARDS, DNV, MSHA
SUITABLE TO CARRY FOOD

Model: KC-70A
Lifting Capacity: 0.5 Tons
Lifting Height: 3m
Chain Diameter: 6mm x 1 strand
Weight: 10 kg

Manufacturer: Kukdong
Origin: South Korea
Lifting Capacity: 1 ton
Lifting Height: 3 m
Load Diameter: 6mm x 1 strand

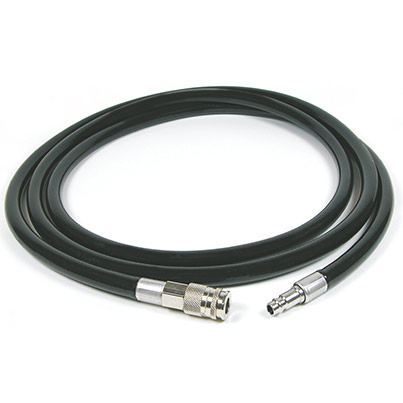

The Scott Safety Airline Respiratory Hoses are air supply hoses that are fitted with both male and femal CEN couplings. Made of PVC the Scott Safety Airline Respiratory Hoses are anti-static and feature a rubber outer with nitrile rubber liner for general heat and chemical resistance

Air supply hose,
Material: PVC
Male and female CEN couplings
Length: 3M or 10M
Colour: Black
Unit: Each
CE Marked
Conforms to EN 14593-1

Type Airline
Material PVC
Size 30 m
Colour Black
Feature Durable PVC (polyvinyl chloride) hose complete with double acting cen couplings. Quick connect to air sources and flow control valve (FCV) personal airline regulator.
Application Suitable for construction, pharmaceutical, agricultural, automotive, biological hazards, light and heavy industries.

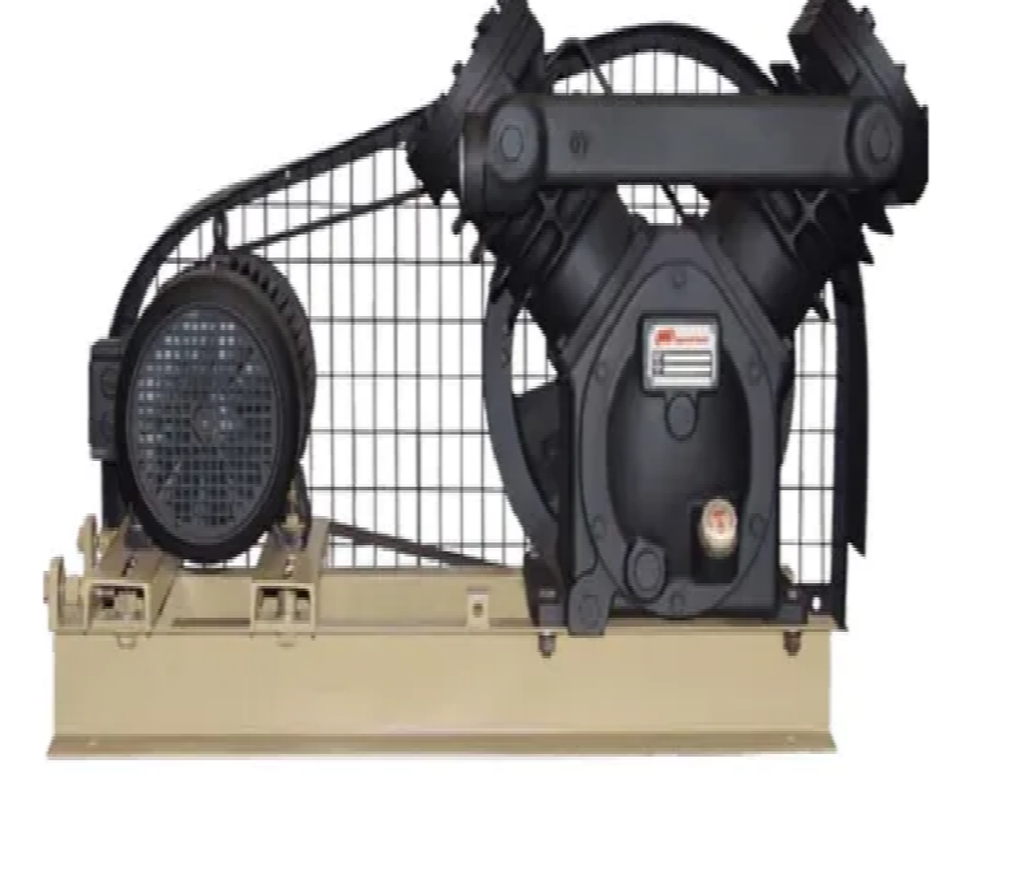

Brand: Ingersoll Rand (USA)
Model: V7
Part No.: 42932319.5hp
Type: Bare Pump - Does not include engine and accumulator
Technology: Clean Piston (Reverse), Air Cooling Type: Air-cooled
Number of Compression Stages: Single Stage
Required Power: 5 HP
Flow Rate (Piston Displacement): 5HP, up to 99 CFM
Maximum Vacuum: Up to 29.0" Hg (at sea level)
Cylinder Construction: Cast Iron (Solid Cast Iron Construction)
Number of Cylinders: 2 Cylinders
Lubrication Type: Splash Lubrication
Suction/Discharge Diameter: 1.5 inch NPT
Estimated Weight: ~200 lbs (91 kg)

Operating temperature range: 0°C~40°C
Operating water pressure range: 0MPa~0.1MPa
Material: FEP
Membran thickness: 25 µm
