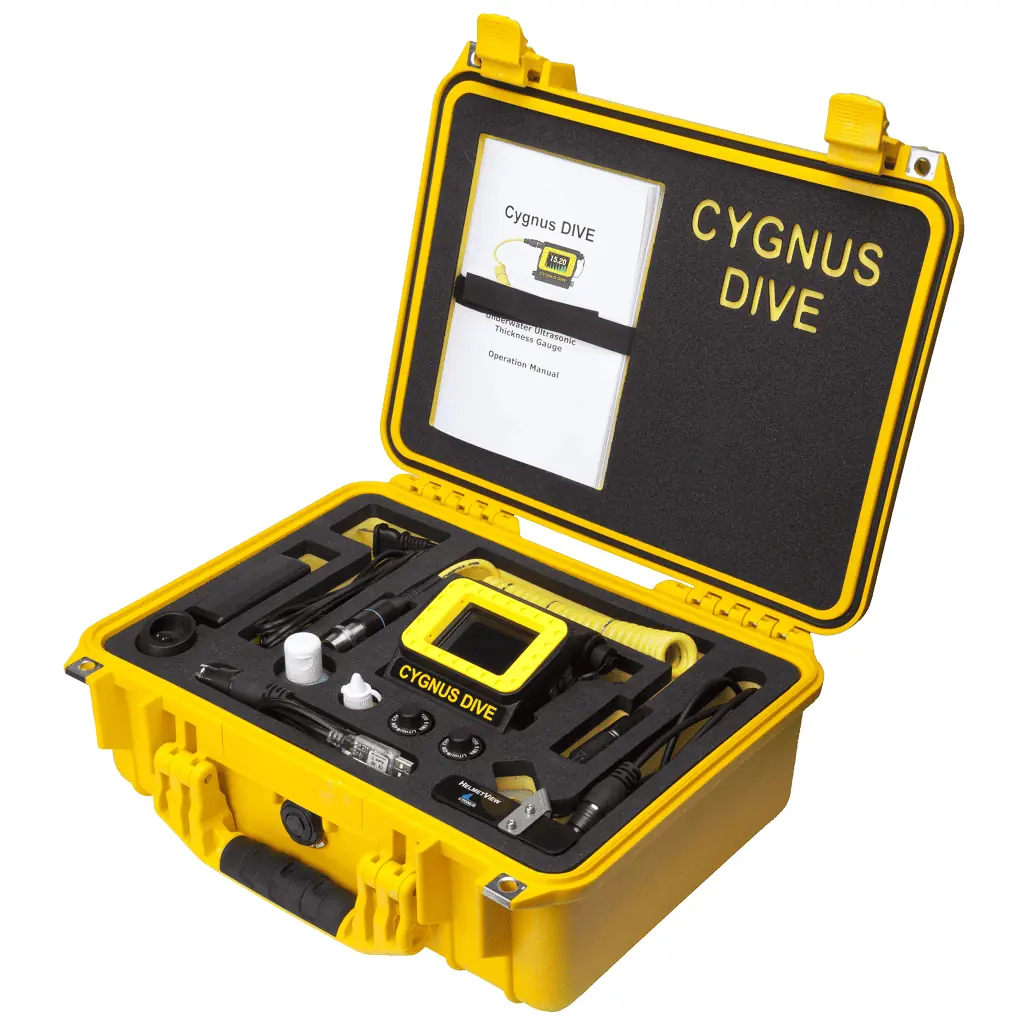

Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
Single-Echo and Echo-Echo modes for heavily corroded metals with a thin or no coating
Deep-Coat function to ignore coatings up to 0.8 inch (20 mm) thick
A-scan display to assist with measurement verification
Optional Data Logging feature with Auto-Log – storing up to 5000 measurements including A-scan data without pressing any button
MSI™ (Measurement Stability Indicator) verifies stable, reliable readings
Rechargeable lithium-ion battery giving up to 10 hours continuous measurement
Optional remote display HelmetView™, Topside Repeater and CygLink surface display software.

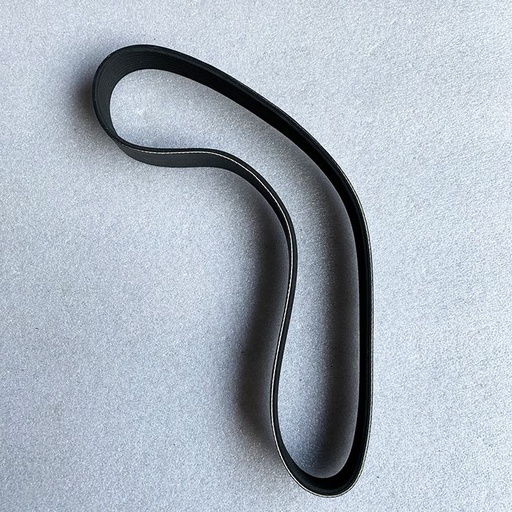

Part Number: 3024614 (also cross-references to 5413029).
Type: V-Ribbed Belt (Trapezoidal profile).
Material: High-quality rubber, resistant to heat, oil, ozone, and moisture.
Application: Alternator/Fan drive belt for Cummins diesel engines.
Engine Models: Cummins K38, K50, KTA19 series

Part Number: 3003343 (New) / 5413003 (Old)
Type: V-Ribbed Serpentine Belt
Grooves/Ribs: 23PK (23 Ribs)
Length: Approx. 2235mm - 2260mm (87.2" - 88.9")
Width: Approx. 82mm (3.22")
Applications: Cummins KTA38, KTA50, QST30 engines

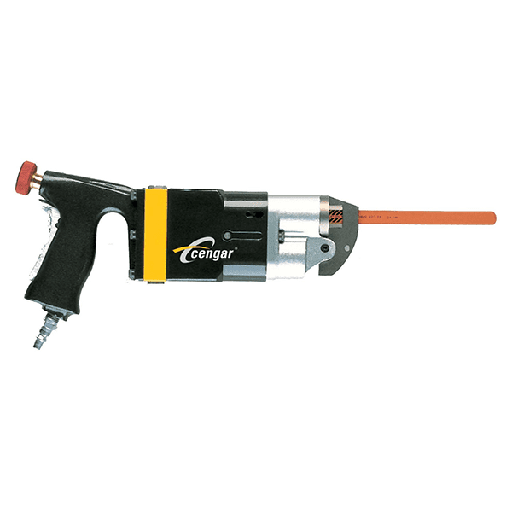

Heavy-duty, low vibration reciprocating air saw
Manufactured with a steel & aluminium body – ideal for demanding high volume applications
For use on wood, reinforced plastic, composite materials, heavy section GRP and metal up to
20mm (3/4”) thick
Ideal for repair, construction and production environments; used in the automotive, industrial & marine industries

ISO 9001 and ISO 13485 certified

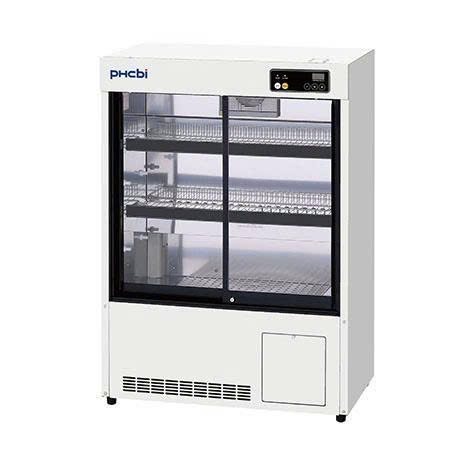

 Configuration supplied:
- Main unit: 1 unit
- Sample racks: 2 units
- Cabinet key: 1 set
- User manual: 1 booklet
 Technical specifications
- Power supply: 220V/ 230V/ 240V, 50Hz
- External dimensions (W x D x H): 800 x 465 x 1090 mm
- Internal dimensions (W x D x H): 720 x 300 x 725 mm
- Capacity: 158 liters
- Weight: 71 kg
- Temperature control range: 2°C – 14°C
- Digital temperature display with 1°C increments
- Exterior cabinet material: galvanized steel with an outer coating
- Interior cabinet material: stainless steel Rust
- Effective insulation with PUF (Polyurethane foam) insulation

- Inside the cabinet there are rigid steel mesh shelves, with a load capacity of 20kg per shelf
Unit 01 48,980,000 48,980,000- The rear wall has a Ø30mm connection port allowing the insertion of a temperature probe into the cabinet chamber
- The cabinet has 2 wheels for easy movement within the room
- Hermetic compressor, 90W power
- Refrigerant: HFC
- Convection fan for high temperature uniformity throughout the chamber
- Heater power for defrosting: 87W
- Cabinet noise level: 35 dB(A)
 Features:

- Temperature lock function
- Temperature sensor monitors the internal temperature of the cabinet chamber and microprocessor-controlled temperature ensures the maintenance of the set temperature
- Digital temperature setting on the control panel New.

- Double sliding glass door with heat-reflective panel
- Interior LED lighting, automatically
on/off when the door opens/closes and can be controlled
from the control panel
- Cyclic defrosting system saves
energy and prevents the increase in cabinet temperature
caused by defrosting
- Automatic cyclic defrosting and automatic defrosting
when the sensor detects frost on the evaporator coil
- Over/Under temperature alarm system: If
the temperature inside the cabinet is ±2°C to ±14°C higher/lower than the
set value, the temperature display will flash and an alarm will sound after a period of time (set from 0 to 15 minutes)
- Door open indicator light. After a period of time, an alarm will sound if the door is still not closed (set from 0 to 15 minutes). If the door remains open after the alarm has stopped, the alarm will sound again after a period of time (which can be set from 0 to 60 minutes).
