ISO 9001 and ISO 13485 certified
Configuration supplied:
- Main unit: 1 unit
- Sample racks: 6 units
- Cabinet key: 1 set
- User manual: 1 booklet

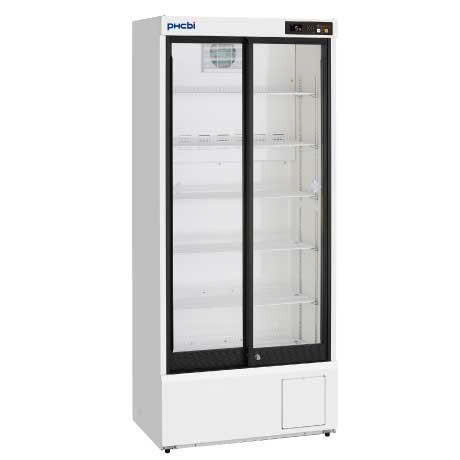

Technical specifications
- Power supply: 220V / 230V / 240V, 50 Hz
- Noise level: 38 dB (A)
- External dimensions (W x D x H): 800 x 500 x 1820 mm
- Internal dimensions (W x D x H): 720 x 360 x 1425 mm
- Storage capacity: 345 liters
- Cabinet weight: 105 kg
- Temperature range: 2°C to 14°C (0.1°C increment)
- Sample racks: 6 units made of hardened steel coated with polyethylene, load capacity 20 kg/rack, dimensions Dimensions (W x D) 697 x 270 mm
- Temperature control system: Microprocessor system
1 unit 86,980,000 86,980,000- Display screen: OLED digital
- Temperature sensor: Thermistor
- Connection port: 30 mm diameter, 1 position
- Refrigerant: HC
- Insulation material: PUF rigid foam
- Exterior cabinet material: Steel with paint coating
- Interior cabinet material: Steel with paint coating
- Outer doors: 2, with 2 layers of high insulation using
tempered glass, with door lock
- Interior lighting: LED
- Alarms: High/low temperature, power failure, door open
Technical features:
- Uses natural refrigerant (HC) to minimize environmental impact, complying with environmental laws. Combined with inverter cooling technology,
it provides better cooling performance and reduces operating costs.
- Microprocessor controller and OLED screen offer excellent display and intuitive operation.
- Cabinet design allows clear viewing of stored samples through the large glass door, preventing unauthorized access via a door lock.
- Double glass door with a 12 mm gap filled with argon inert gas prevents condensation from forming on the door.
- Interior LED lighting system provides superior illumination for better sample viewing, automatically turning on/off when the door is opened/closed.
