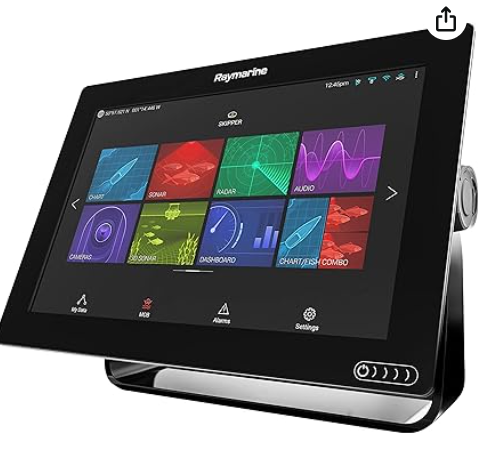

Raymarine AXIOM 12 RV Multifunction Display with integrated RealVision 3D, 600W Sonar and LightHouse North America Chart, part no:E70369-00-102
Product Description:
The Raymarine AXIOM 12 RV Multifunction Display (part number E70369-00-102) is a cutting-edge navigation and fishfinding system designed for serious mariners. This 12-inch multifunction display integrates advanced features such as RealVision 3D sonar, a powerful 600W sonar system, and the LightHouse North America chart, providing an all-in-one solution for navigation, chart plotting, and fishing. The RealVision 3D sonar provides stunning 3D imaging, allowing you to see underwater topography in unprecedented detail. The 600W sonar provides clear and accurate fish detection, while the LightHouse North America Chart offers detailed, up-to-date navigation charts for coastal and inland waterways. With its sleek design and powerful performance, the AXIOM 12 RV offers intuitive control via the multi-touch display and supports Wi-Fi, Bluetooth, and NMEA 2000 connectivity for easy integration with other marine electronics. Whether you’re navigating coastal waters or fishing offshore, the AXIOM 12 RV delivers reliable performance and exceptional clarity.
Specifications:
Model: Raymarine AXIOM 12 RV Multifunction Display
Part Number: E70369-00-102
Screen Size: 12 inches
Display Type: High-resolution, multi-touch LCD display
Sonar: Integrated RealVision 3D sonar, 600W CHIRP sonar
Charting: LightHouse North America chart preloaded
Connectivity: Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Power Supply: 12-24V DC
Dimensions: 282mm x 227mm x 86mm (11.1" x 8.9" x 3.4")
Weight: Approx. 2.6 kg (5.7 lbs)
Operating Temperature: -15°C to +55°C (5°F to 131°F)
Water Resistance: IPX6 and IPX7 rated for marine environments
Mounting Options: Flush or bracket mount
Features: RealVision 3D sonar, 600W sonar, multi-touch display, Wi-Fi and Bluetooth support, detailed North America charts, NMEA 2000 and Ethernet connectivity
Included in the Box: AXIOM 12 RV, mounting hardware, power cable, and documentation
Barcode:
34.6.99
Producer:
Raymarine
Origin:
United Kingdom
Delivery Time:
6 - 8 Weeks
